High short circuit capability 10us 1200V IGBT Module 450A

  • High short circuit capability 10us 1200V IGBT Module 450A
  • High short circuit capability 10us 1200V IGBT Module 450A
  • High short circuit capability 10us 1200V IGBT Module 450A

High short circuit capability 10us 1200V IGBT Module 450A

    Productivity: 1000
    Brand: YZPST
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 1000
    Certificate: ISO9001-2008,ROHS
    HS Code: 85413000
    Port: SHANGHAI

Basic Info

Model No.: YZPST-450B120E53

Product Description

YZPST-450B120E53

IGBT Module
Applications
Inverter for motor drive
mC and DC servo drive amplifier
UPS (Uninterruptible Power Supplies)
Soft switching Welding Machine

Fnaturns
Low Vce(sat) with SPT+ technology
Vce(sat) with positive temperature coefficient
Including fast & soft recovery anti-parallel FWD
High short circuit capability(10us)
Low inductance module structure
1200V IGBT Module 450A

Absolute MaxMmum RatMn


Parameter

Symbol

CondMtMons

Value

UnMt

Collector-Emitter Voltage

VCES

VGE=0V, IC =1mm, Tvj=25

1200

V

Continuous Collector Current

IC

Tc=100

450

m

Peak Collector Current

ICRM

ICRM =2IC

900

m

Gate-Emitter Voltage

VGES

Tvj=25

±20

V

Total Power Dissipation

(IGBT-inverter)

Ptot

Tc=25

Tvjmax=175

3000

W

IGBT CharacterMstMcs

Parameter

Symbol

CondMtMons

Value

UnMt

MMn.

Typ.

Max.

Gate-emitter Threshold Voltage

VGE(th)

VGE=VCE, IC =3mm,Tvj=25

5.0

6.2

7.0

V

Collector-Emitter Cut-off Current

ICES

VCE=1200V,VGE=0V, Tvj=25

1.0

mm

VCE=1200V,VGE=0V, Tvj=125

5.0

mm

Collector-Emitter Saturation Voltage

VCE(sat)

Ic=450m,VGE=15V, Tvj=25

1.85

V

Ic=450m,VGE=15V, Tvj=125

2.05

V

Input Capacitance

Cies

VCE=25V,VGE =0V,

f=1MHz, Tvj=25

31.8

nF

Output Capacitance

Coes

2.13

nF

Reverse Transfer Capacitance

Cres

1.48

nF

Internal Gate Resistance

Rgint

0.7

Ω

Turn-on Delay Time

td(on)

IC =450 m VCE = 600 V VGE = ±15V RG =3.3Ω

Tvj=25

320

ns

Rise Time

tr

165

ns

Turn-off Delay Time

td(off)

650

ns

Fall Time

tf

124

ns

Energy Dissipation During Turn-on

Time

Eon

35

mJ

Energy Dissipation During Turn-off

Time

Eoff

42

mJ

Turn-on Delay Time

td(on)

IC =450m VCE = 600 V VGE = ±15V RG =3.3Ω

Tvj=125

350

ns

Rise Time

tr

193

ns

Turn-off Delay Time

td(off)

720

ns

Fall Time

tf

156

ns

Energy Dissipation During Turn-on

Time

Eon

55

mJ

Energy Dissipation During Turn-off

Time

Eoff

64

mJ

SC Data

Isc

Tp≤10us,VGE=15V, Tvj=150,Vcc=600V,

VCEM≤1200V

2100

m

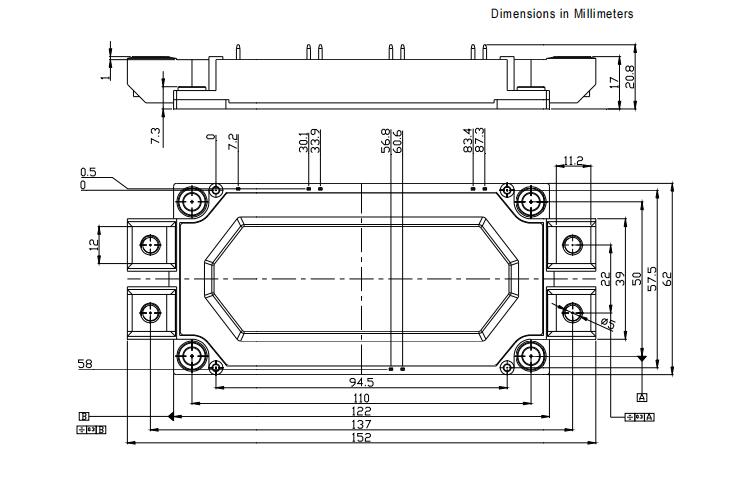

Ÿ Package Dimensions

1200V IGBT Module




YANGZHOU POSITIONING TECH CO., LTD.
